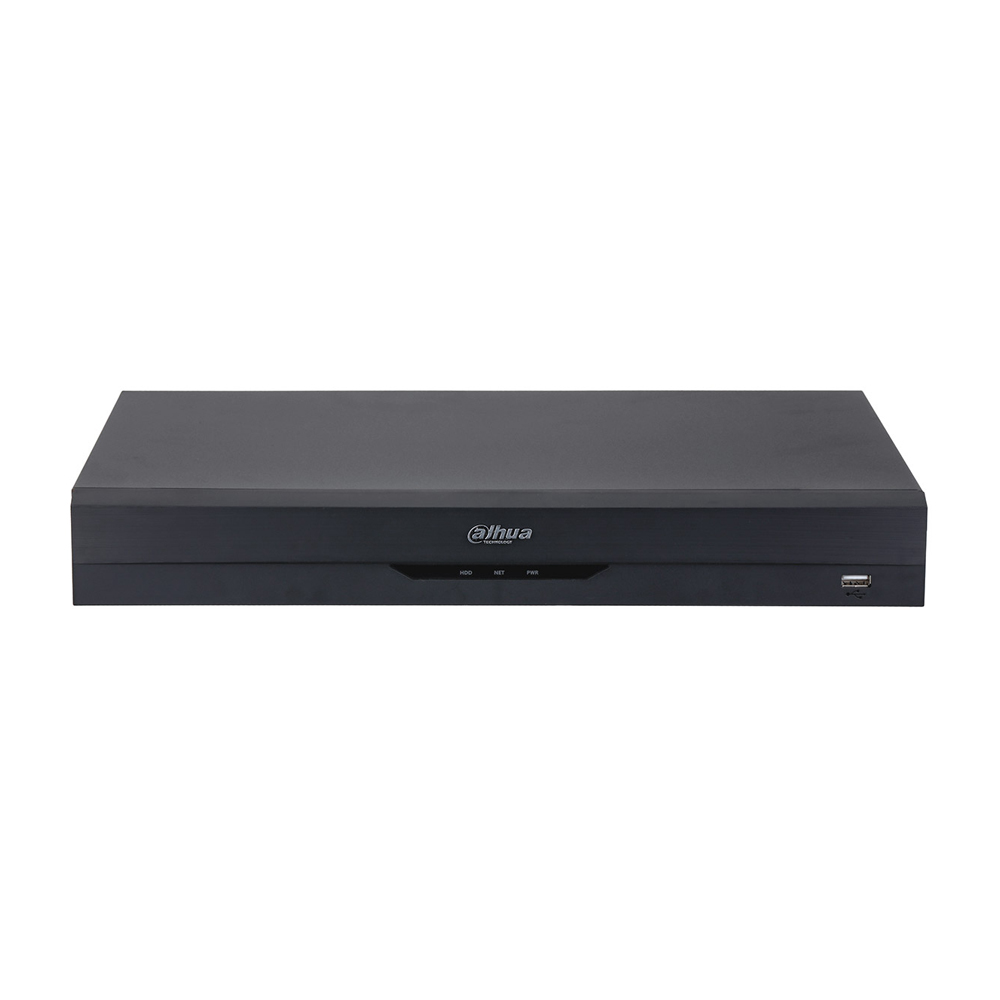

DAHUA XVR5232AN-I3 32 Kanal Penta-brid 5M-N/1080P WizSense DVR
Kayıt Cihazı | 32 Kanal |
Kamera Disk Yuvası | 2 HDD |
350.00 $
DAHUA XVR5232AN-I3 32 Kanal Penta-brid 5M-N/1080P WizSense DVR
DAHUA XVR5232AN-I3 32 Kanal Penta-brid 5M-N/1080P WizSense DVR
Kayıt Cihazı | 32 Kanal |
Kamera Disk Yuvası | 2 HDD |
System | |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
Perimeter Protection | |
Perimeter Performance AI by Recorder (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
Face Detection | |
Face Attributes | Gender, age groups , glasses, expressions , face mask, beard |
Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s) |
Face Recognition | |
Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture |
Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
SMD Plus | |
SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
Audio and Video | |
Analog Camera Input | 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 5MP, 4 MP, 1080P@25/30 fps; 720P@50/60 fps; 720P@25/30 fps. 2. TVI: 5MP, 4MP, 3MP, 1080P@25/30 fps; 720P @25/30 fps. 3. AHD: 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P @25/30 fps |
IP Camera Input | Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
Encoding Capacity | Main stream: All channels 5M-N@(1fps–10fps); 4M-N/1080P@(1fps–15fps); 1080N; 720P; 960H; D1; CIF@(1fps–25/30fps) Sub stream: D1/CIF@(1fps–25/30fps) |
Dual-stream | Yes |
Video Frame Rate | PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps |
Video Bit Rate | 32 kbps–6144 kbps per channel |
Audio Sampling | 8 kHz, 16 bit |
Audio Bit Rate | 64 kbps |
Video Output | 1 HDMI, 1 VGA, 1 TV HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
Multi-screen Display | 1/4/8/9/16/25/36 |
Third-party Camera Access | Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
Compression Standard | |
Video Compression | AI Coding; H.265+; H.265; H.264+;H.264 |
Audio Compression | G.711A; G.711u; PCM |
Network | |
Network Protocol | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
Mobile Phone Access | iOS, Android |
Interoperability | ONVIF 21.06, CGI |
Browser | Chrome, IE9 or later, Firefox |
Network Mode | Single-address mode |
Recording Playback | |
Record Mode | General, motion detection; intelligent; alarm; POS |
Recording Playback | 1/4/9/16 |
Backup Method | USB device and network |
Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
Storage | |
Disk Group | Yes |
Alarm | |
General Alarm | Motion detection, video loss, tampering |
Anomaly Alarm | No disk, storage error, low space, offline, IP conflict, MAC conflict |
Intelligent Alarm | Face detection, face recognition, perimeter protection |
Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
Ports | |
TV Output | 1 channel |
Audio Input | 1-channel RCA (external) 32-channel BNC (coaxial audio) |
Audio Output | 1-channel RCA |
Two-way Talk | Yes (share the same audio input with the first channel) |
HDD Interface | 2 SATA ports, up to 16 TB, the maximum HDD capacity varies with environment temperature |
RS-485 | 1 |
USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
HDMI | 1 |
VGA | 1 |
Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
General | |
Power Supply | 12 VDC, 5 A |
Power Consumption | Lower than 17 W (without HDD) |
Net Weight | 1.98 kg (4.36 lb) |
Gross Weight | 3.15 kg (6.94 lb) |
Product Dimensions | 1U, 375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H) |
Packaging Dimensions | 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H) |
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Operating Humidity | 0%–90% (RH) |
Installation | Desktop |
Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
