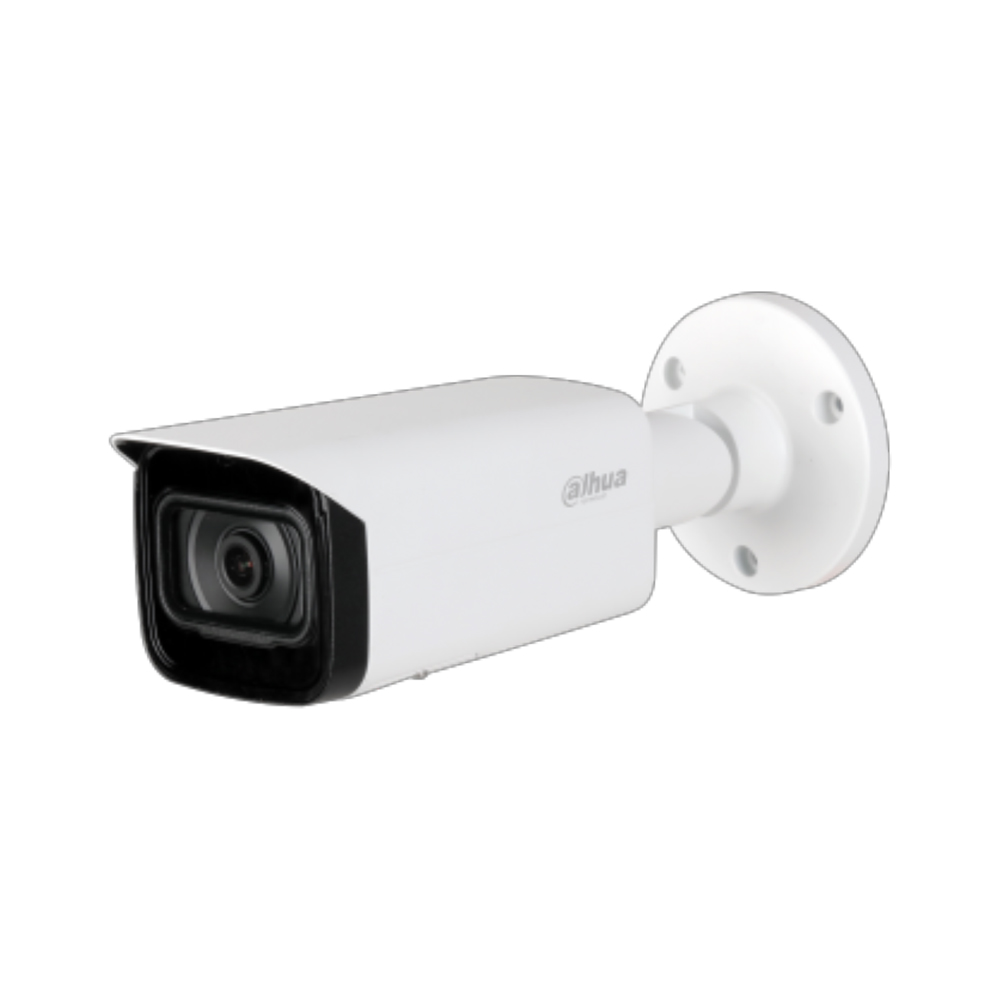

DAHUA HFW2431T-AS 4MP 3,6mm Lite IR Bullet IP Kamera
DAHUA HFW2431T-AS 4MP 3,6mm Lite IR Bullet IP Kamera
| Kamera Kasa Tipi | Bullet |
| Kamera Çözünürlük | 4MP |
| Lens Özelliği | 3.6mm |
| Optik Zoom | Yok |
| Kamera Ses Desteği | VAR (Audio I/O) |
| Gece Görüş Mesafesi | 80m |
| Kamera SD Kart Desteği | Var |
| 24/7 Color | Var |
| Alarm Desteği | Var |
| WDR | 120dB |
| PoE Desteği | Var (Aktif PoE) |
| Koruma Direnci | IP67 |
| Lens Tipi | Sabit Lens |
| Camera | |||||
| Image Sensor | 1/3” 4Megapixel progressive CMOS | ||||
| Max. Resolution | 2688 (H) × 1520 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 128 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.008 Lux@F1.6 | ||||
| S/N Ratio | > 56 dB | ||||
| Illumination Distance | 80 m (262.5 ft) | ||||
| Illuminator On/Off Control | Auto/Manual | ||||
| Illuminator Number | 4 (IR LED) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6 mm; 6 mm; 8 mm | ||||
| Max. Aperture | 3.6 mm: F1.6 6 mm: F1.6 8 mm: F1.6 | ||||
| Field of View | 3.6 mm: Horizontal 84° × Vertical 45° × Diagonal 100° 6 mm: Horizontal 52° × Vertical 28° × Diagonal 61° 8 mm: Horizontal 40° × Vertical 23° × Diagonal 45° | ||||
| Iris Type | Fixed | ||||
| Close Focus Distance | 3.6 mm: 1.4 m (4.6 ft) 6 mm: 3.1 m (10.2 ft) 8 mm:4.9 m(16.1 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6 mm | 80 m (262.5 ft) | 32.0 m (105.0 ft) | 16.0 m (52.5 ft) | 8.0 m (26.2 ft) | |
| 6 mm | 120.0 m (393.7 ft) | 48.0 m (157.5 ft) | 24.0 m (78.7 ft) | 12.0 m (39.4 ft) | |
| 8 mm | 160.0 m (524.9 ft) | 64.0 m (210.0 ft) | 32.0 m (105.0 ft) | 16.0m (52.5 ft) | |
| Smart Event | |||||
| IVS | Tripwire; intrusion | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264B; MJPEG(only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) | ||||
| Stream Capability | 2 streams | ||||
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps | ||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Smart Illumination | Yes | ||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Audio Compression | G.711a; G.711Mu; G.726 | ||||
| Alarm | |||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm | ||||
| Network | |||||
| Network | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | ||||
| User/Host | 20 | ||||
| Storage | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS | ||||
| Browser | IE Chrome Firefox | ||||
| Management Software | Smart PSS; DSS; DMSS | ||||
| Mobile Phone | IOS; Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | ||||
| Port | |||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 1 channel in: 5mA 3V–5V DC | ||||
| Alarm Output | 1 channel out: 300mA 12V DC | ||||
| Power | |||||
| Power Supply | 12V DC/PoE (802.3af) | ||||
| Power Consumption | < 7.7W | ||||
| Environment | |||||
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH | ||||
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | ||||
| Protection Grade | IP67; IK10(optional) | ||||
| Structure | |||||
| Casing | Metal | ||||
| Dimensions | 244.1 mm × Φ90.4 mm (9.61" × Φ3.26") | ||||
| Net Weight | 0.91 kg (2.0 lb) | ||||
| Gross Weight | 1.16 kg (2.6 lb) | ||||
