36.00 $

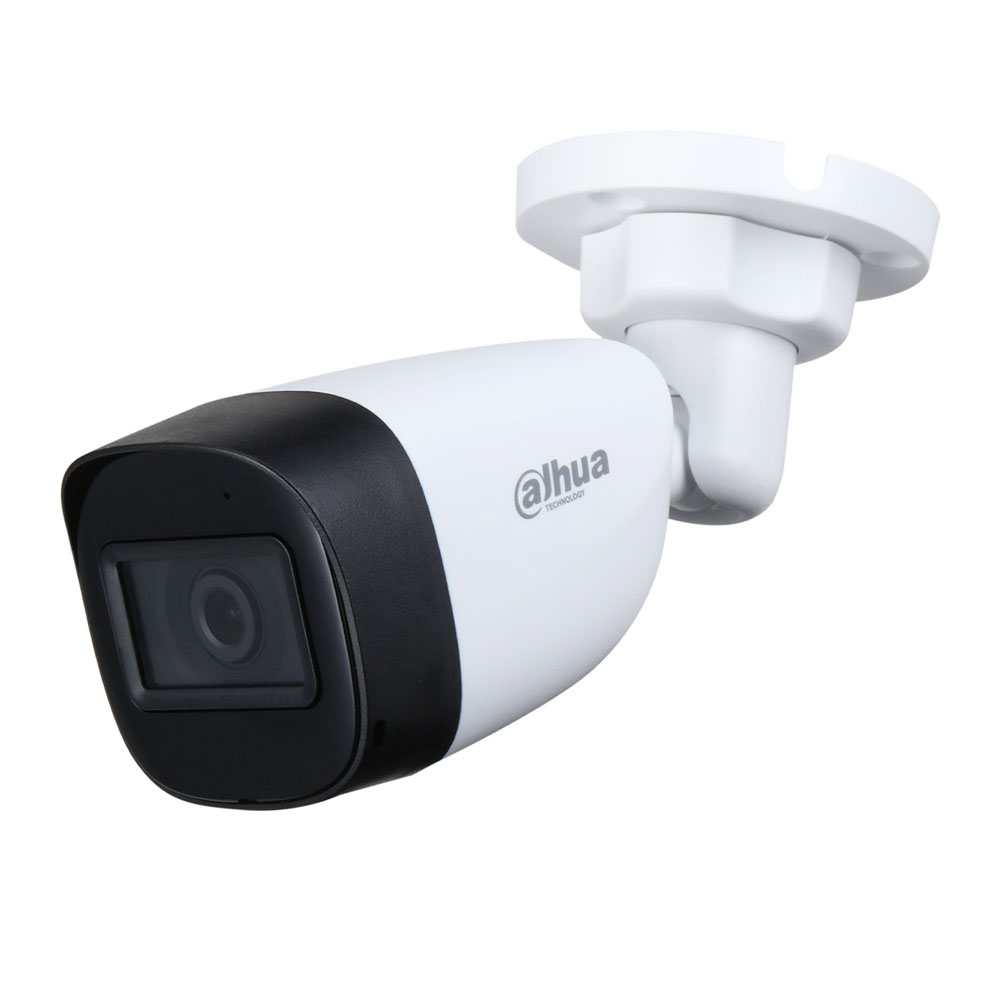

DAHUA HAC-HFW1500C 5MP 3.6mm Starlight HDCVI IR Bullet Kamera
DAHUA HAC-HFW1500C 5MP 3.6mm Starlight HDCVI IR Bullet Kamera
| Kamera Kasa Tipi | Bullet |
| Lens Tipi | Sabit Lens |
| Kamera Ses Desteği | Yok |
| WDR | DWDR |
| Alarm Desteği | Yok |
| PoE Desteği | Yok |
| Gece Görüş Mesafesi | 30m |
| Kamera Çözünürlük | 5MP |
| Koruma Direnci | IP67 |
| Lens Özelliği | 3.6mm |
| 24/7 Color | Var |
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Max. Resolution | 2880 (H) × 1620 (V) | ||||
| Pixel | 5MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s | ||||
| S/N Ratio | >65 dB | ||||
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on | ||||
| Illumination Distance | 30 m (98.4 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 3 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.6 | ||||
| Field of View | 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) | ||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 63.6 m (208.7 ft) | 25.4 m (83.3 ft) | 12.7 m (41.7 ft) | 6.4 m (21.0ft) | |
| 3.6 mm | 80 m (262.5 ft) | 32 m (105.0 ft) | 16 m (52.5 ft) | 8 m (26.2 ft) | |
| Video | |||||
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H | ||||
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart IR | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||
| Port | |||||
| Audio Interface | - | ||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 3.7W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Plastic throughout the whole casing | ||||
| Camera Dimensions | 161.3mm×69.7mm×70.0mm(6.35"×2.75"×2.75" ) | ||||
| Net Weight | 0.19 kg (0.55 lb) | ||||
| Gross Weight | 0.29 kg (0.64 lb) | ||||
